Towards an Open-Source Hardware Flow Battery

Kirk Smith

Flow Battery Research Collective

Daniel Fernández Pinto

Flow Battery Research Collective

Josh Hauser

Utrecht University/FAIR Battery Project

Sanli Faez

Utrecht University/FAIR Battery Project

October 16, 2024

Flow Battery Research Collective: Who are we?

A brand-new community of researchers, energy storage users, and enthusiasts who want to help develop and democratize technologies for affordable, sustainable energy storage

We are trying to build an open-source battery for storing solar and wind energy.

https://fbrc.dev

Our approach

  • Open-source hardware1: no patents, no licensing fees, free for commercial use

  • Cooperative, not competitive: trying to establish global community of contributors (eventually, users)

Why open-source?

  • Low barriers to entry = more iterations, with more brainpower, for lower cost
    (vs. a closed-source, private enterprise)

  • Open-source provides valuable economic benefits, or, it takes money + time to reinvent the wheel

    • in software, open-source provides annual demand-side value to society of $8.8 trillion (USD) (Hoffmann et al. [2024])
    • For €1 billion invested, €65 to 95 billion benefit to EU GDP (Blind et al. [2021])

Open-source energy hardware

French academia:

  • LAAS-CNRS lab creates open-source power electronics, commercializes them with open-source hardware company OwnTech (OwnTech Foundation [2024])
    L’objectif est de “développer globalement et fabriquer localement”

  • Ampère laboratory at INSA Lyon: embedded motor control, lead-acid charge controllers

Globally:

Why not a battery?

Our roadmap

What scale?

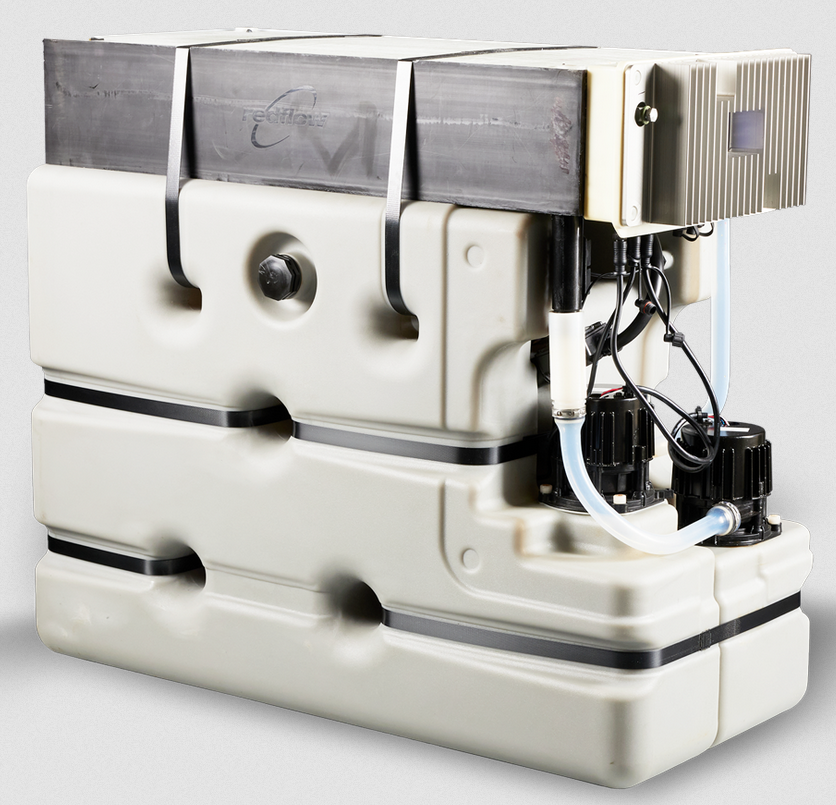

Redflow’s ZBM3, 3 kW / 10 kWh zinc-bromine flow battery [2022]

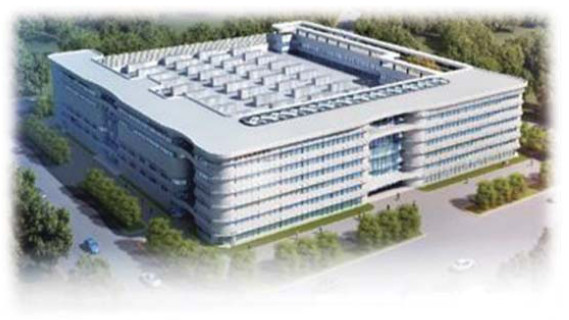

Rongke Power’s 200 MW/800 MWh vanadium flow battery in Dalian Roth et al. [2023]

More like this

Less like this

Can RFBs really offer this performance?

A qualitative, non-peer-reviewed comparison - assuming all technologies were manufactured at the same economies of scale

The reality

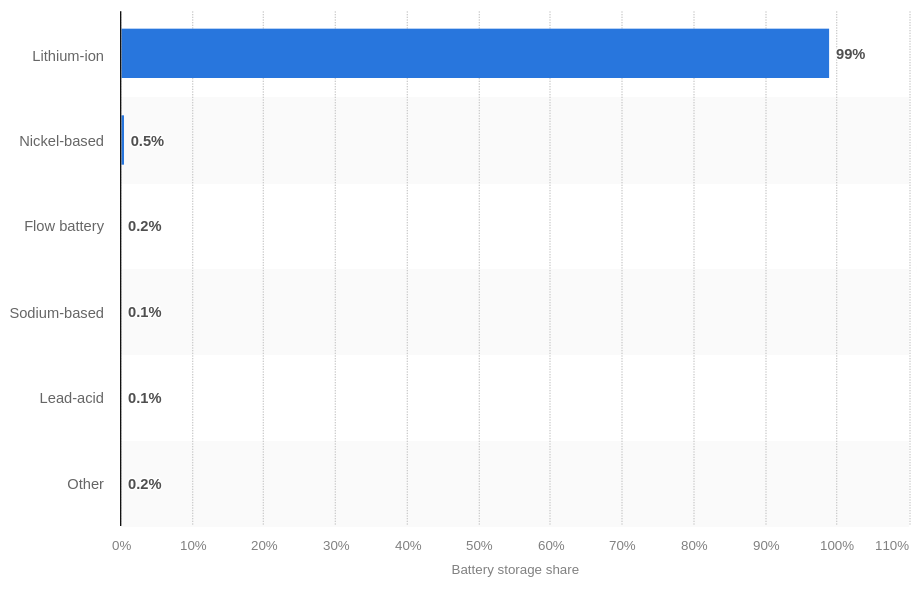

Distribution of large-scale battery storage installations in the United States as of 2022, by chemical composition
(https://www.statista.com/statistics/1135383/battery-storage-installations-power-capacity-chemistry/)

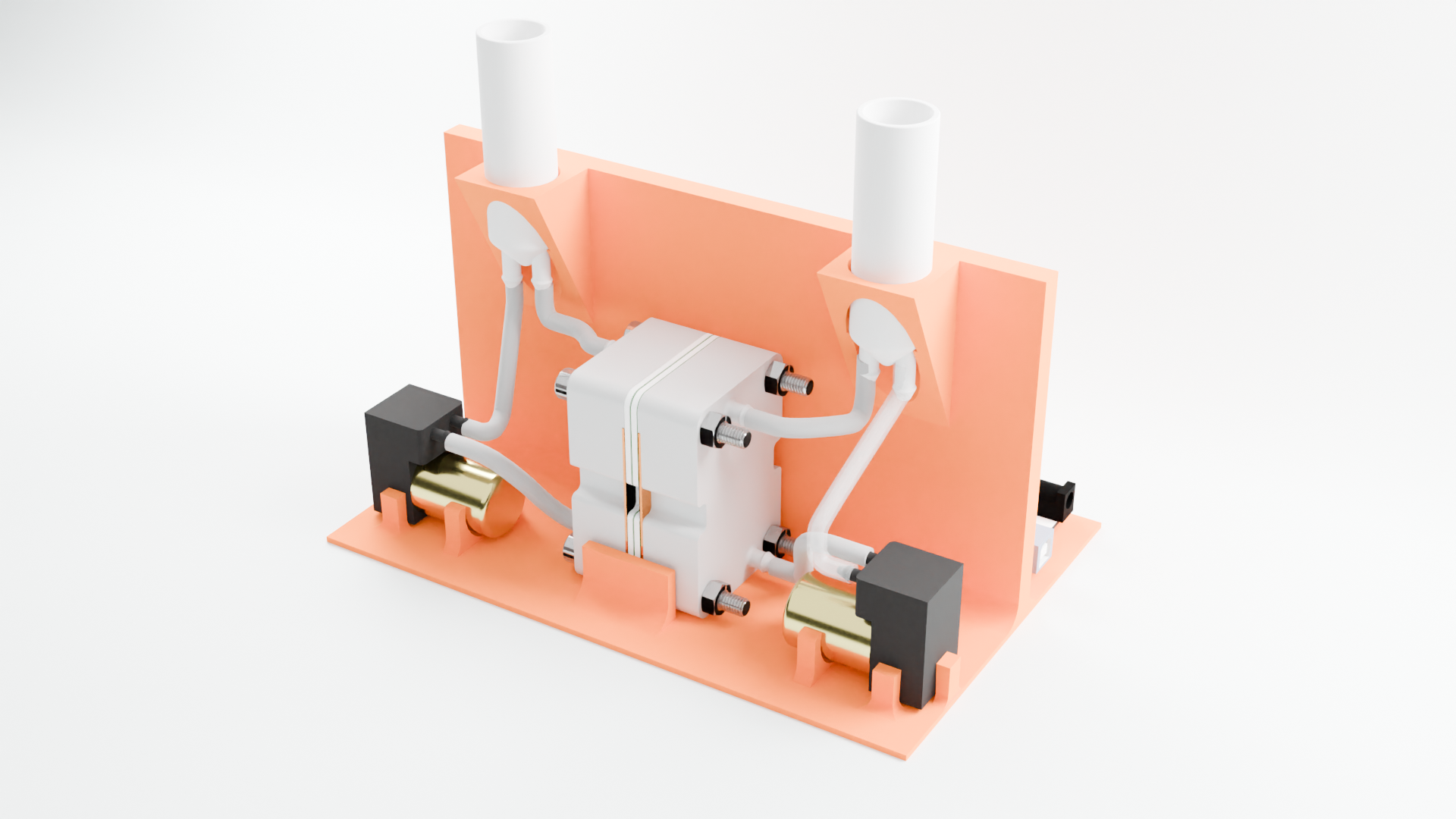

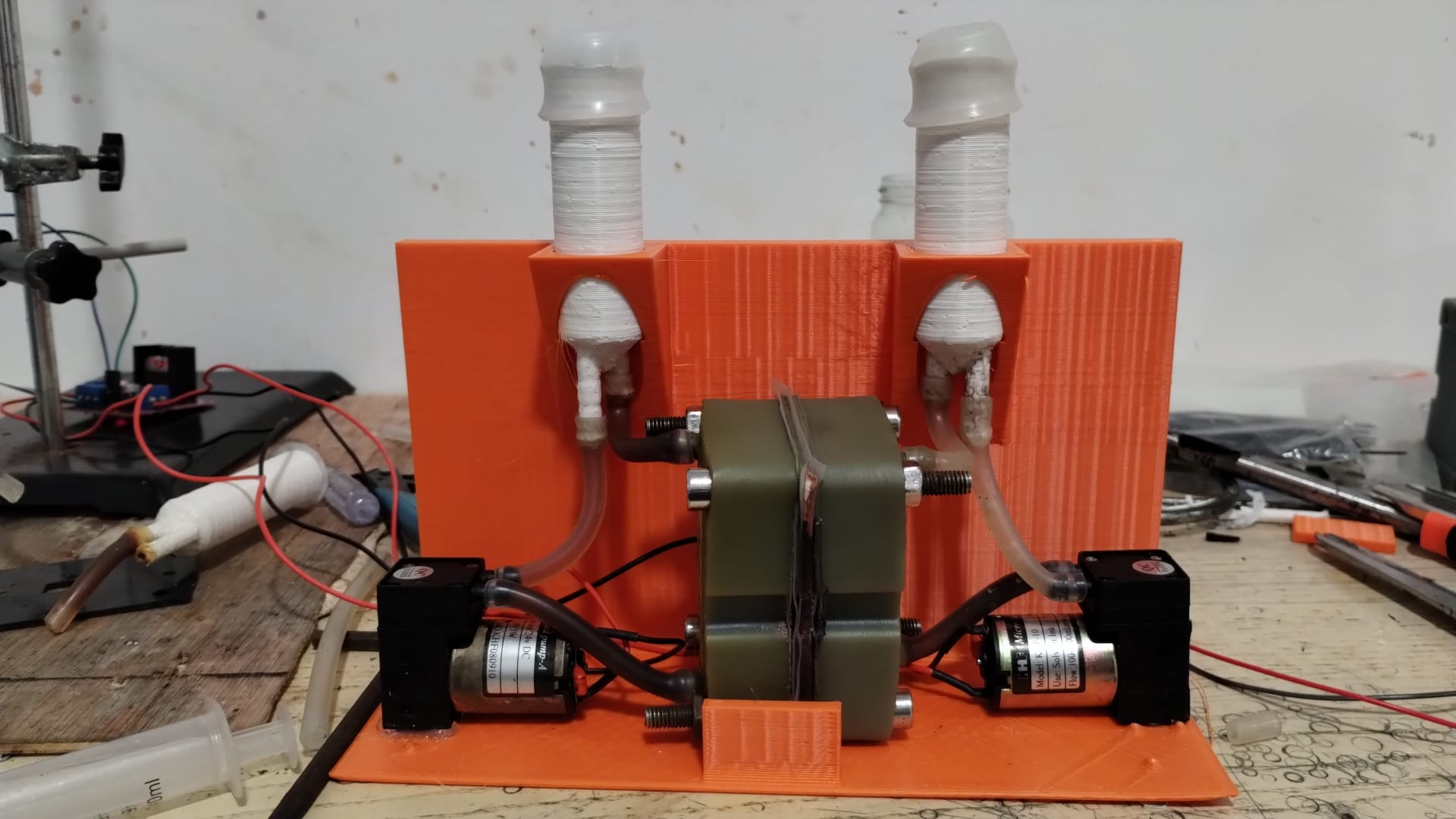

Current status: prototype benchtop cell

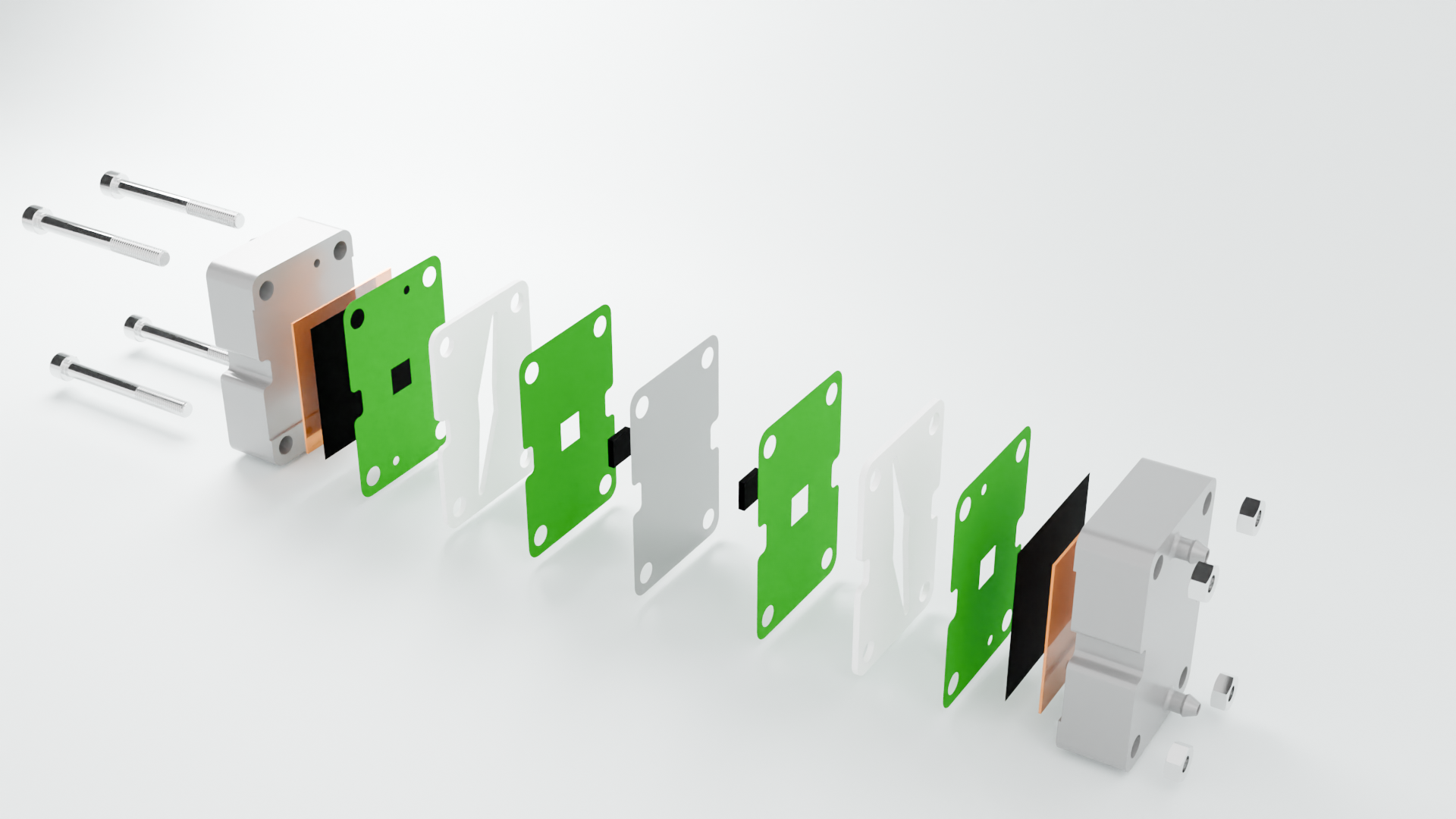

Exploded view of current design

Exploded view of the a prior cell design

Some initial cost-saving measures

Affordable membrane

2,520 EUR/m2 vs. 6 EUR/m2 (Ion Power GmbH and Amazon UK)

Affordable current collectors

1,477 EUR/m2 vs. 66 EUR/m2 (FuelCellStore and Amazon US)

No glovebox/inert gas requirements

We use buffers to mitigate the effects of ambient oxygen

Apartment chemistry/prototyping

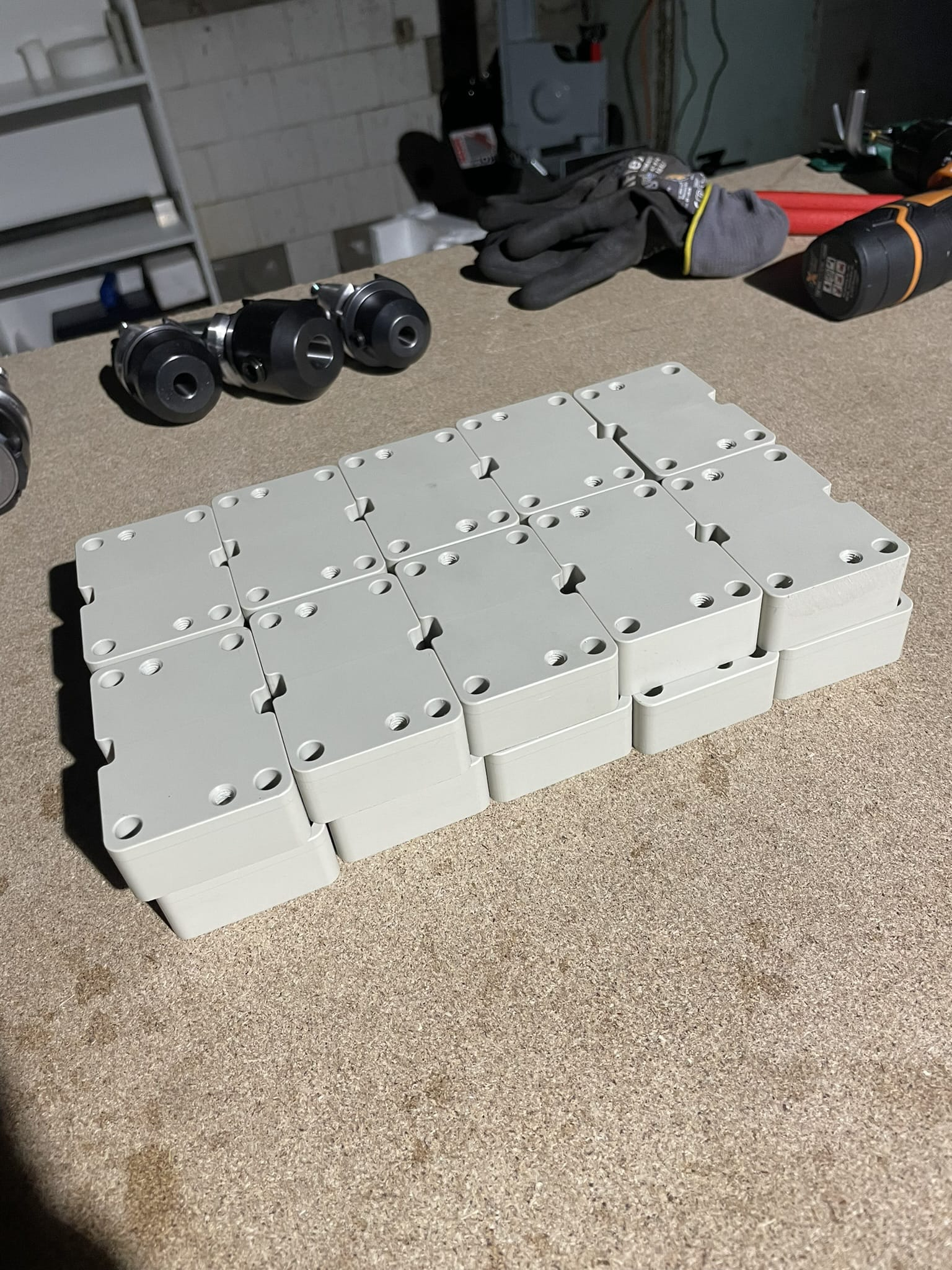

Small batch run for a workshop

More info on the workshop and cell design here: https://fbrc.dev/posts/Flow4U-conference/

The chemistry

Our initial chemistry is zinc-iodide, but we plan to explore more varieties.

  • Negative Terminal (Anode): \(\ce{3Zn_{(s)} -> 3 Zn^2+ + 6e-}\)

  • Positive Terminal (Cathode): \(\ce{2I3- + 6e- -> 6I- }\)

  • Overall: \(\ce{3Zn_{(s)} + 2I3- -> 3Zn^2+ + 6I-}, E^\ominus = 1.298 V\)

  • Parasitic reaction: \(\ce{6I- + O2 + 2 H2O -> 2I3- + 4OH- }\)

  • Existing literature: [Weng et al. 2017; Xie et al. 2018; Chakraborty et al. 2021]

Why Zn/I?

  • Easy to source, low-cost reagents (vs. vanadium, for example)

  • Compatible with cheap microporous membranes, such as paper

  • Resistant to dendrites

  • No detectable hydrogen evolution (unlike all-iron systems)

  • Acceptable energy density (>20Wh/L)

  • No strong acids or bases needed

  • Low toxicity (but don’t drink it!)

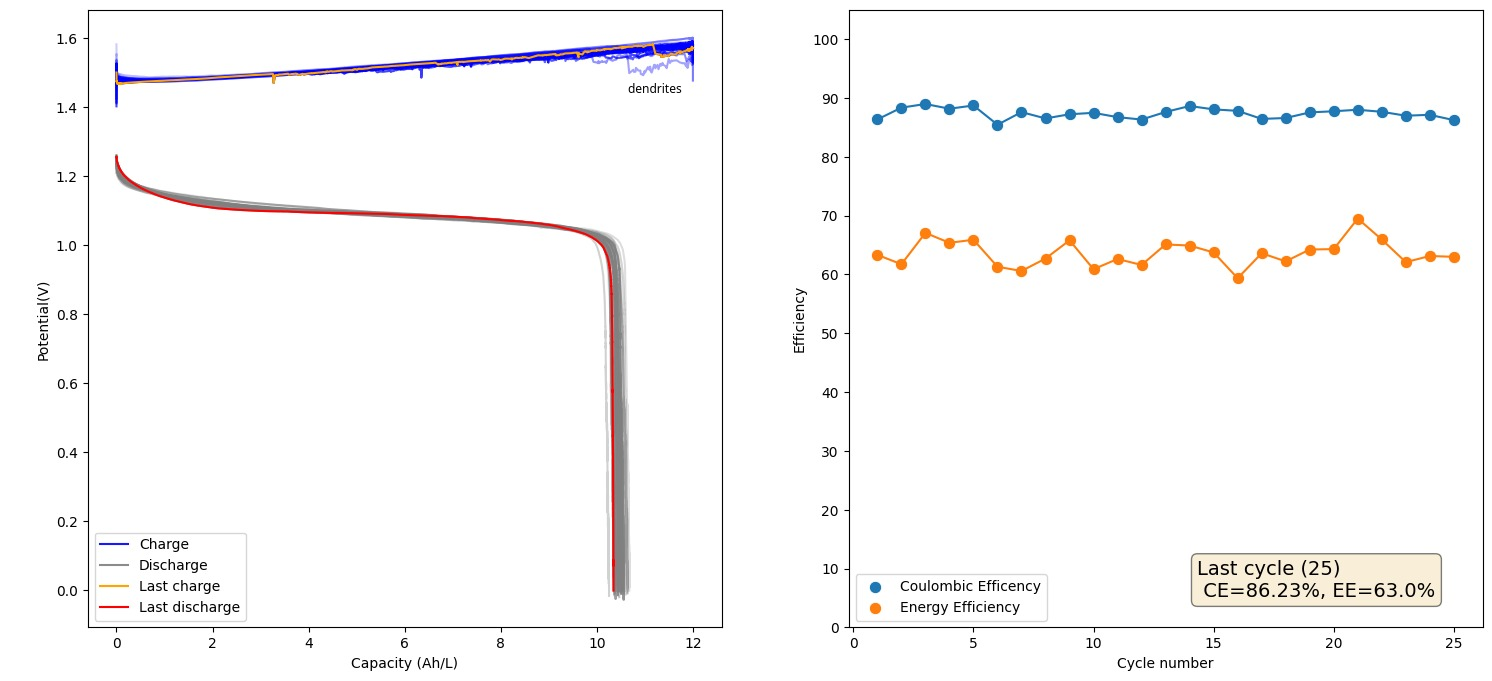

Current performance: low concentration, 100 mAh/cm²

1 m \(\ce{ZnCl2}\), 2 m \(\ce{KI}\), \(\ce{KAc}\) buffer, 5 mL each side, photopaper separator, 30 mA/cm², 100 mAh/cm², over 5 days

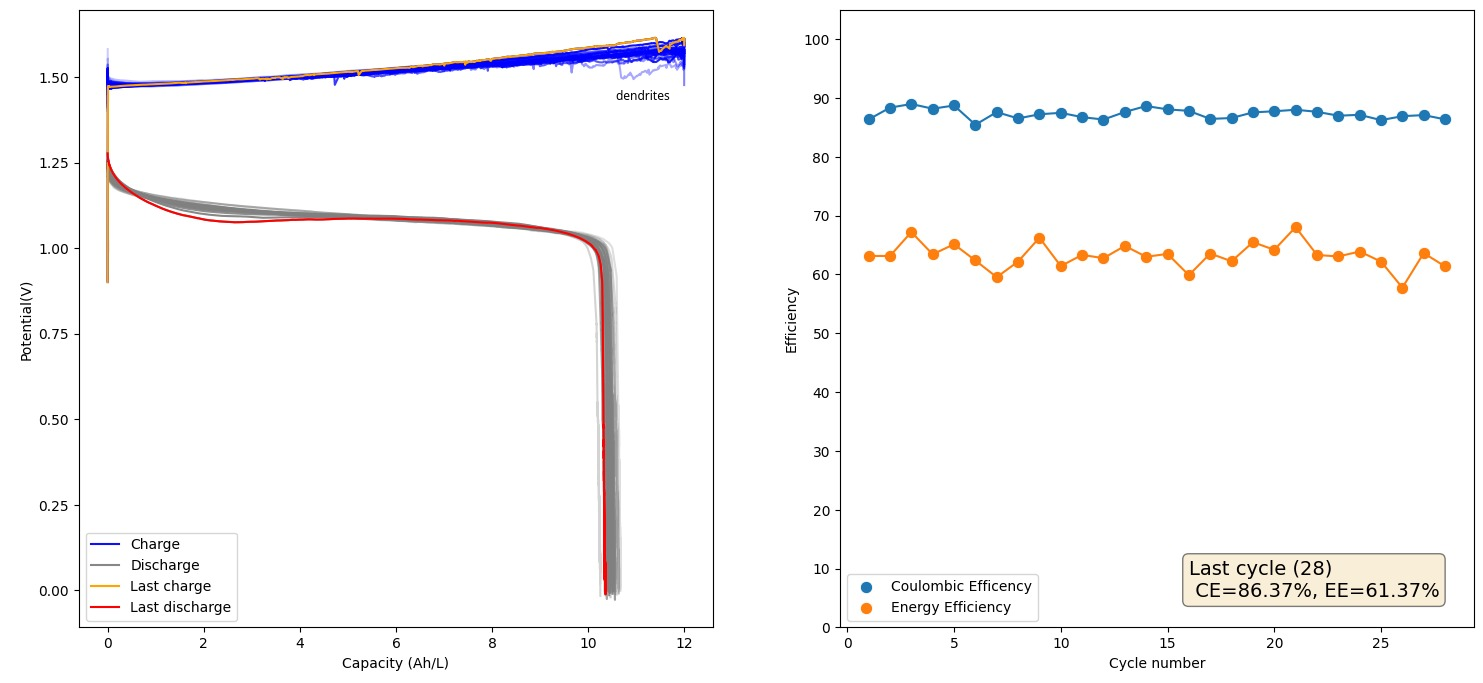

Current performance: low concentration, 120 mAh/cm²

1 m \(\ce{ZnCl2}\), 2 m \(\ce{KI}\), \(\ce{KAc}\) buffer, 5 mL each side, photopaper separator, 30 mA/cm², 120 mAh/cm², same cell from last test, 6 days (11 total)

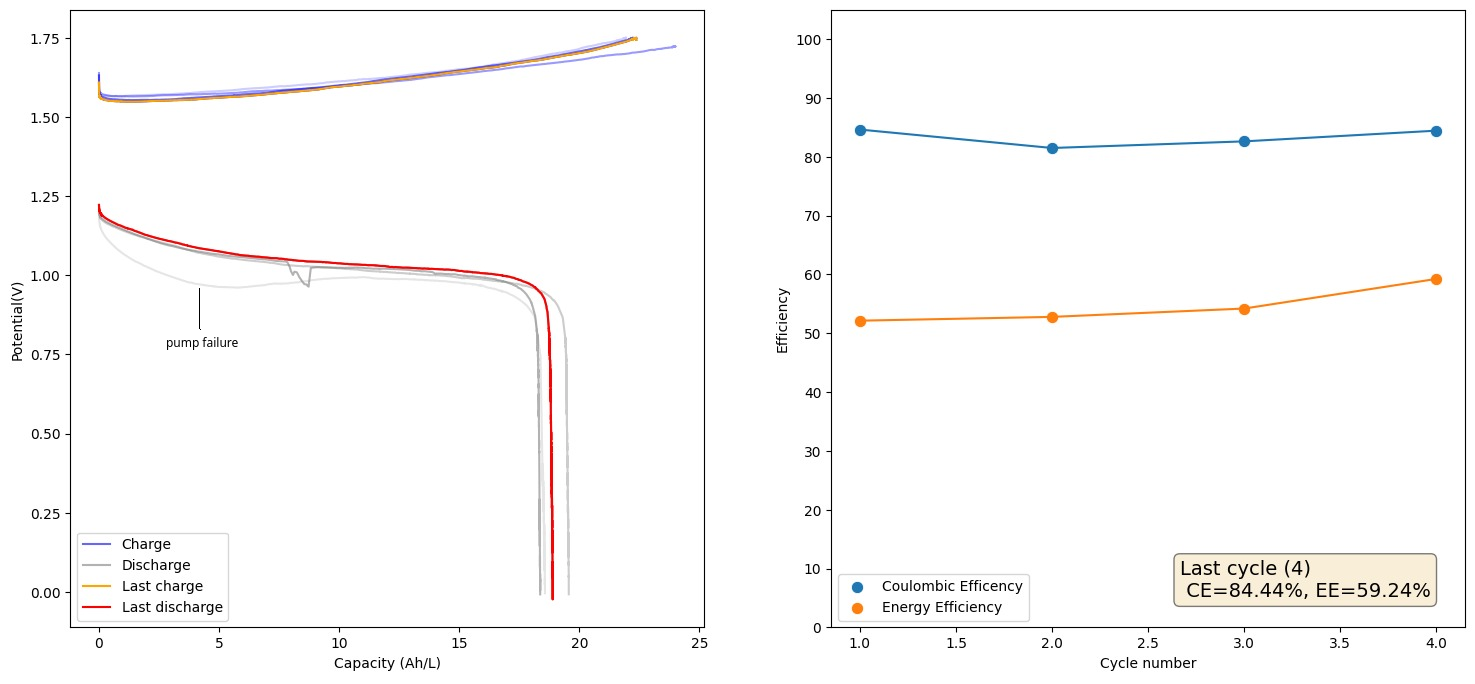

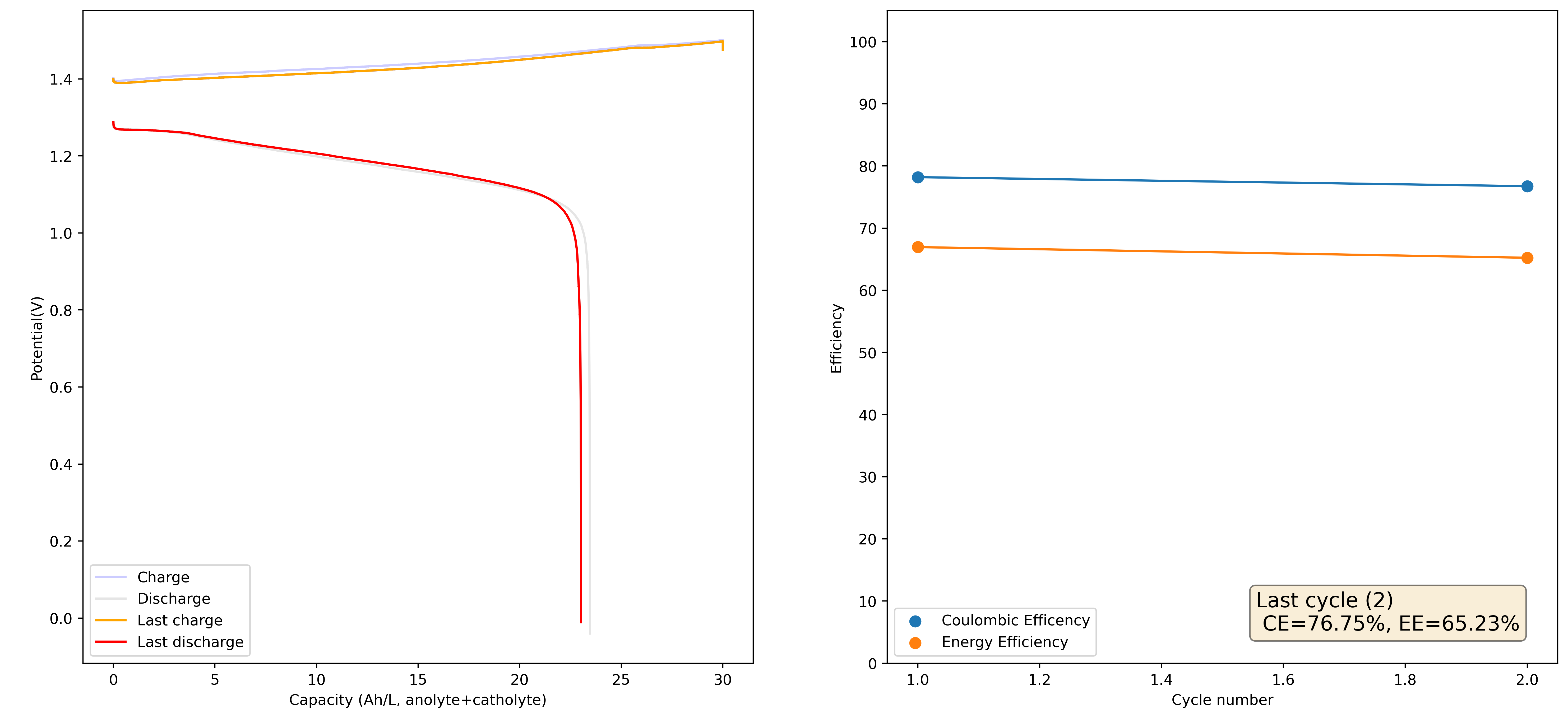

Current performance: medium concentration try 1

2 m \(\ce{ZnCl2}\), 4 m \(\ce{KI}\), \(\ce{KAc}\) buffer, 5 mL each side, photopaper separator, 30 mA/cm², 120 mAh/cm²

Current performance: medium concentration try 2

2 m \(\ce{ZnCl2}\), 4 m \(\ce{KI}\), 2m \(\ce{NH4Cl}\), 5 mL each side, Daramic AA-900 separator, nonconductive felt for Zn, 30 mA/cm², 300 mAh/cm²

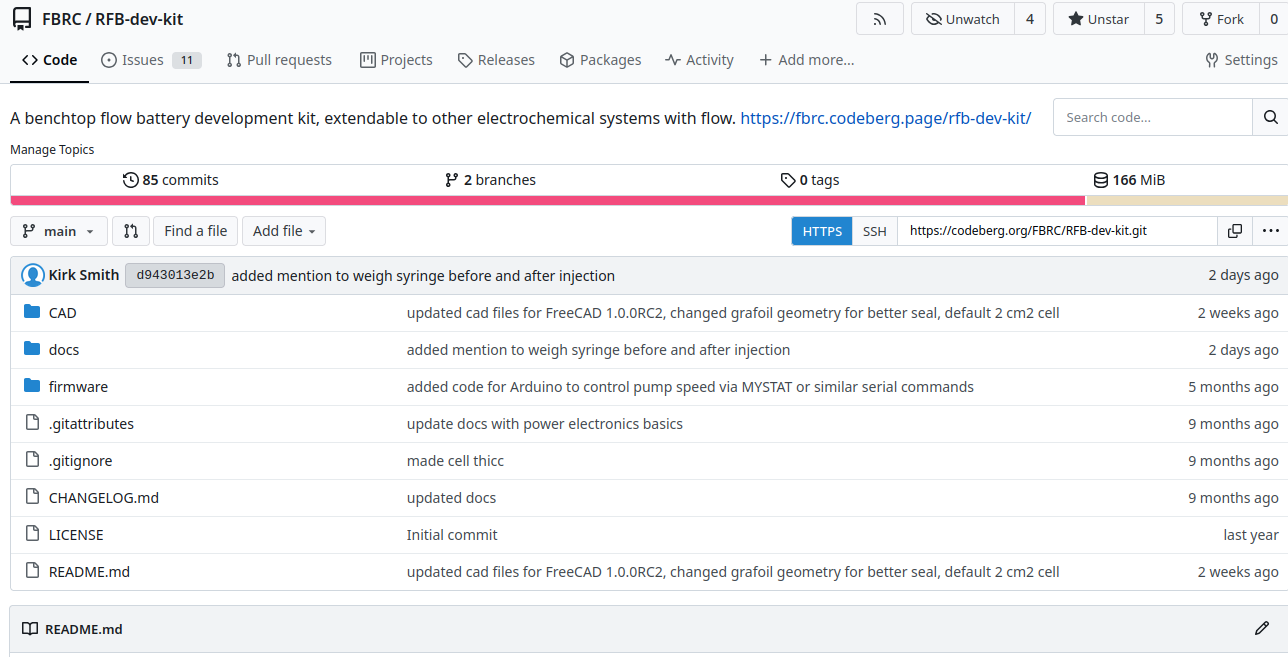

All of that information in one place, editable

How to get involved?

  • Test your chemistry/membrane/electrode in our cell
    • Looking for a lab to test all-vanadium system for us for comparison purposes
    • also organic-ferrocyanide chemistry, since this is popular for startups
    • it can fit in a glovebox! Can be nonaqueous-compatible
  • Improve/extend documentation
  • Help design better flow fields, cell geometry, modeling, etc.—especially with large-format cell and stack!
  • Actively looking for grants/funding opportunities/consortiums

https://fbrc.dev

Acknowledgements

  • Josh Hauser, Sanli Faez & FAIR Battery team
  • Daniel Fernández Pinto, chief chemist
  • Conference organizers!
  • NLnet’s NGI0 Entrust fund

FAIR Battery

https://nlnet.nl/project/RedoxFlowBattery/
